PPE Stealth Decoy Reader (SDR) v2
Professional Covert Badge Skimming
Current Firmware: Version 1.2.1 | Release Date: December 6, 2025 | Download Firmware
The Stealth Decoy Reader (SDR) v2 is a next-generation credential capture platform built for professional red teamers and physical penetration testers. Engineered for silent, reliable operation, SDR v2 delivers consistent card data capture across both Wiegand and Clock/Data systems, including HID and Paxton Net2 environments. Designed for hands-on operators who need fast deployment, clean power delivery, and zero observable footprint.
Key Features:
Multi-Format Reader Options
Ships preconfigured with your choice of integrated reader hardware:

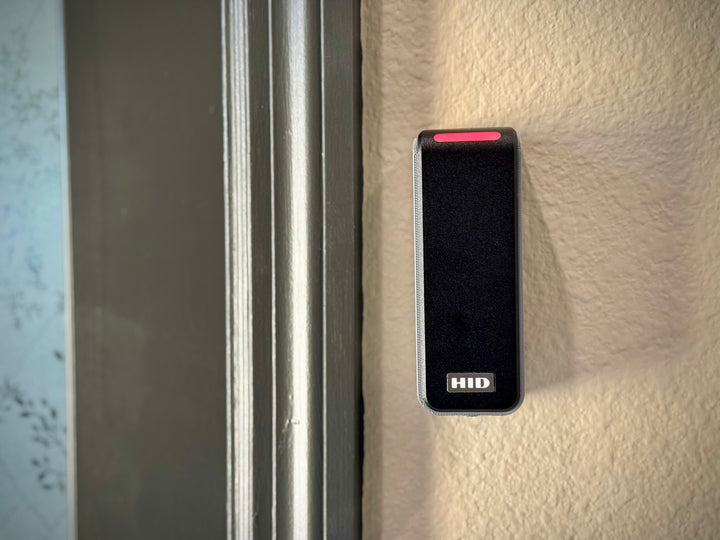

- HID multiCLASS SE RP40
- HID Signo 20TKS

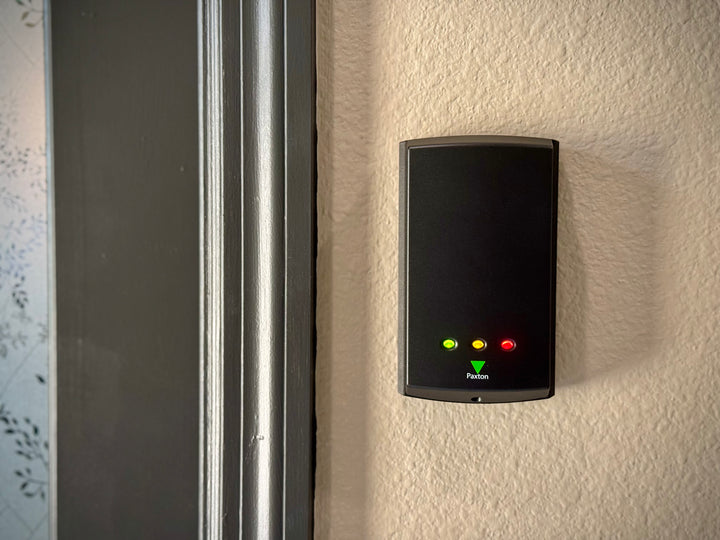

- Paxton P75
All versions arrive fully wired, tested, and ready for field use.
Broad Credential Coverage
SDR v2 supports capture across the formats encountered during real-world assessments:
- HID iCLASS SE, SEOS, SR, Standard iCLASS
- MIFARE Classic and DESFire EV1 (via SE for MIFARE)
- HID Prox, AWID, EM4102, and T5577 compatible cards
- Indala (Signo Readers Only)
- Paxton Net2 tokens and cards
Paxton Net2 Support (Paxton Mode)
| Card Type | Format | Protocol |
|---|---|---|
| Paxton Net2 | 75-bit | Net2/EM |
Card Parsing Capabilities (HID Mode - Wiegand)
| Card Type | Format |
|---|---|
| HID H10301 | 26-bit |
| Indala | 26-bit |
| Indala | 27-bit |
| 2804 WIEGAND | 28-bit |
| Indala | 29-bit |
| ATS Wiegand | 30-bit |
| HID ADT | 31-bit |
| WEI32 (EM4102) | 32-bit |
| HID D10202 | 33-bit |
| HID H10306 | 34-bit |
| HID Corporate 1000 | 35-bit |
| HID Simplex (S12906) | 36-bit |
| HID H10304 | 37-bit |
| HID H800002 | 46-bit |
| HID Corporate 1000 | 48-bit |
| Avigilon 50-bit | 50-bit |
| Avigilon Avig56 | 56-bit |
| PIV/Mifare | UID capture only |
Integrated 12V Boost Power
An onboard boost circuit supplies clean 12V power from the included 3.7V PPE LiPo battery. SDR v2 eliminates external adapters, unstable step-ups, and field improvisation.
Battery Powered and Rechargeable
Includes a PPE 3.7V 1800mAh LiPo cell that provides more than four hours of continuous runtime. PPE batteries use unique polarity and must be used with SDR v2. Recharge using the PPE 2-in-1 Fast USB-C LiPo Charger (sold separately).
Stealth Mode Switch
A hardware toggle disables WiFi for silent operations, NAC evasion, and reduced RF exposure. Ideal for sensitive environments and low-profile placement.
Discreet Mounting System
A magnetic rear plate and adhesive hook-and-pile strips allow quick mounting near doors, cabinets, badge points, and choke areas. No tripod, long standoff, or visible setup required.
Included in the Box
Full Reader Option

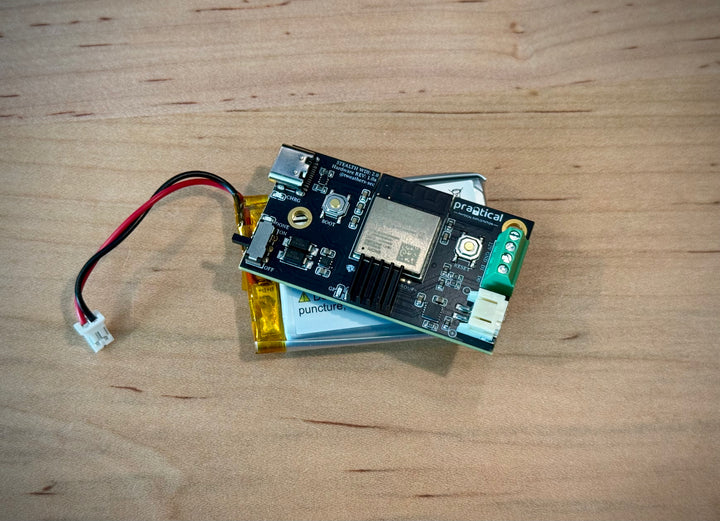

- Stealth Decoy Reader (SDR) v2 board
- Reader of choice
- PPE 3.7V 1800mAh LiPo battery
- PPE Stealth Card
- HID iCLASS 2k card (HID Variants Only)
- T5577 card
- Magnetic mounting plate
- Hook-and-pile mounting strips
Board & Battery Only Option
- Stealth Decoy Reader (SDR) v2 board
- PPE 3.7V 1800mAh LiPo battery
Product Documentation
- Hardware: https://physicalexploit.com/docs/products/rfid/stealth_v2
- Firmware: physicalexploit.com/docs/products/code/doppelganger_stealth
Legal Disclaimer
This device is intended for use by professional physical security practitioners during authorized access control assessments. Unauthorized use is strictly prohibited. Practical Physical Exploitation (PPE) and Mayweather Group LLC assume no liability for misuse or deployment outside the scope of authorized engagements.
