MFAS Wiegand Data Interpreter (v2)
Card + PIN. Covertly Captured.
The PPE MFAS (Multi-Factor Auth Stealth) Wiegand Data Interpreter (v2) is the advanced evolution of the Stealth platform—designed to support full multifactor access testing, including PIN entry and PIV badge capture. Whether you’re testing high-security environments in defense, federal, or critical infrastructure spaces, MFAS v2 gives you the visibility and data you need to validate real-world risks.
Key Features:
Keypad Reader Options – RPK40 or SIGNO 20KTSK
Choose from two fully-integrated HID keypad reader options based on your target environment:
-
HID multiCLASS SE RPK40 – Classic keypad form factor
-
HID SIGNO 20KTSK – Slim, modern keypad profile in the SIGNO series
Both support credential + PIN entry capture and are pre-installed for plug-and-play deployment.
Multifactor + Credential Capture
Supports a wide range of badge types and authentication protocols:
-
HID iCLASS SE, SEOS, SR, Standard iCLASS
-
PIV/CAC badge formats
-
MIFARE Classic / DESFire EV1 (via SE for MIFARE)
-
HID Prox, AWID, EM4102, and T5577-compatible credentials

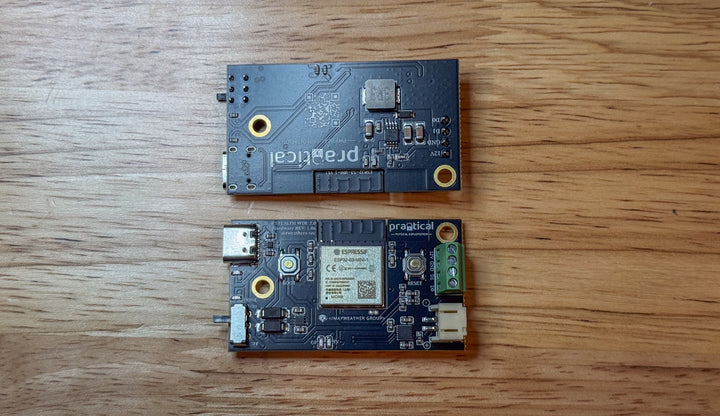

Integrated Boost Circuit (Clean 12V Power)
Includes onboard voltage regulation to provide consistent 12V output to the reader from a 3.7V PPE LiPo battery. No external power supplies or adapters needed.
Extended Runtime, Rechargeable Power
Runs for 4+ hours on a single PPE 3.7V 1800mAh LiPo battery (included). Only PPE-branded batteries should be used—polarity is fixed and incompatible with third-party packs.
Hardware WiFi Toggle (Stealth Mode)
Easily disable WiFi to reduce RF footprint and avoid detection by wireless NAC or monitoring systems. Toggle is hardware-controlled for reliability in restricted zones.
Rapid Deployment, Covert Placement
Ships with both magnetic and hook-and-pile mounting options. Deploy quickly on walls, near secured entryways, or in inconspicuous areas—ideal for door + keypad testing without requiring long-range standoffs.
Included in the Box:
-
PPE MFAS Wiegand Data Interpreter (v2)
-

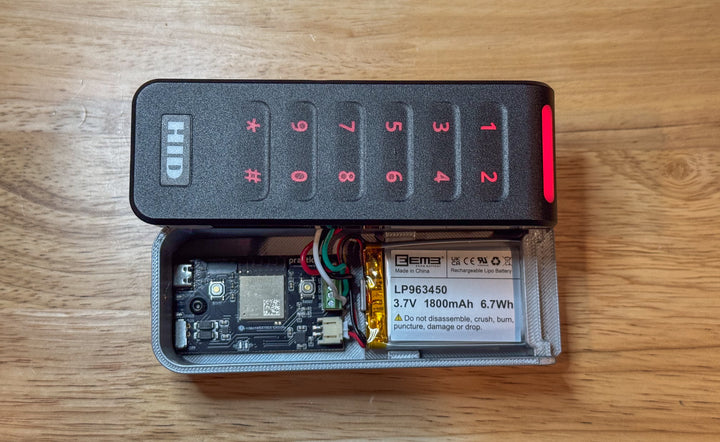

HID multiCLASS SE RPK40 or SIGNO 20KTSK keypad reader (pre-installed)
-
PPE 3.7V 1800mAh LiPo battery
-
PPE Stealth card, HID iCLASS 2k card, and T5577 card
-
Magnetic mounting backplate
-
Hook-and-pile adhesive mounting strips
-
Security screw tool & Allen wrench
Documentation Link: https://physicalexploit.com/docs/products/rfid/stealth/
Legal Disclaimer
This device is intended solely for use by professional physical security practitioners during authorized access control assessments. Any unauthorized use is strictly prohibited. Practical Physical Exploitation (PPE) and Mayweather Group LLC assume no liability for misuse or illegal deployment.
